FAF AUTOMATIC HYDRAULIC CONTROL VALVES
Introducing the

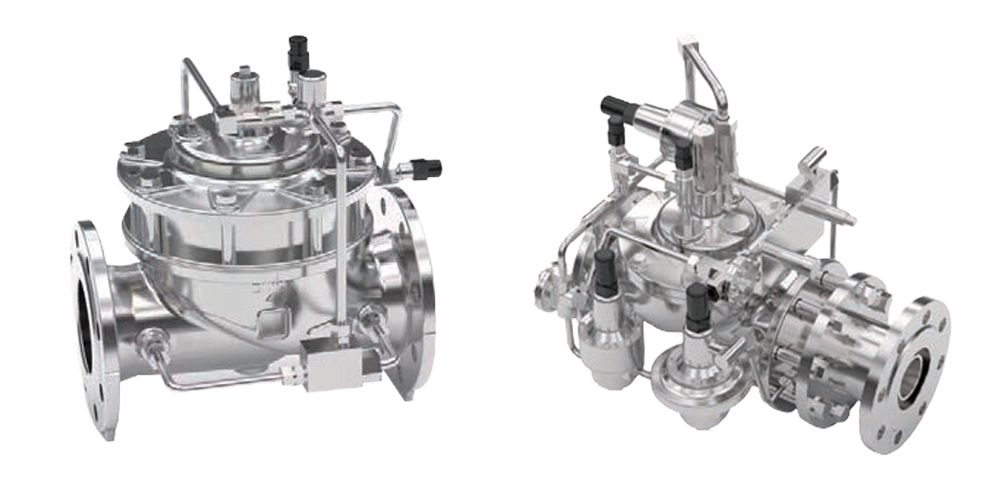

FAF Automatic Hydraulic Control Valves
Whatever the application is, FAF gets it right by offering the best solution for the project. The Automatic Control Valve system is a combination of a main valve and specific, scalable pilot. Automatic Control Valves (power supply free) offers 14 functions to ensure pressure, level or flow control. All are available with reduced bore or full bore.
Functions & Advantages
By using the energy from the flow medium, Automatic Control Valve is a servo-operated hydraulic valve, controlled by one or more appropriate devices depending on the function.
- • Full bore globe pattern design for low head loss while fullyopen (recommended in situations in which there is little energy to be dissipated).
- • Reduced bore globe pattern design for high performance in all situations, it can be used for most functions (particularly suitable for large pressure differentials, and minimises the risk of cavitation).
- • Keep stable working condition even the flow rate close to zero.
- • Most components are machined by CNC
- • High sensitive and strength fabric reinforced preformed diaphragm:
- • Fusion bonded epoxy coating process min 250
- • Easy installation, operation and doesn’t require maintenance.
- • High standard production test: -Seal test: Low pressure 0.5 bar High pressure 1.1xPN+1bar – Shell test: 1.5xPN+1 bar
Applications
Product Family
Pressure Control
FAF 7551
Pressure Reducing

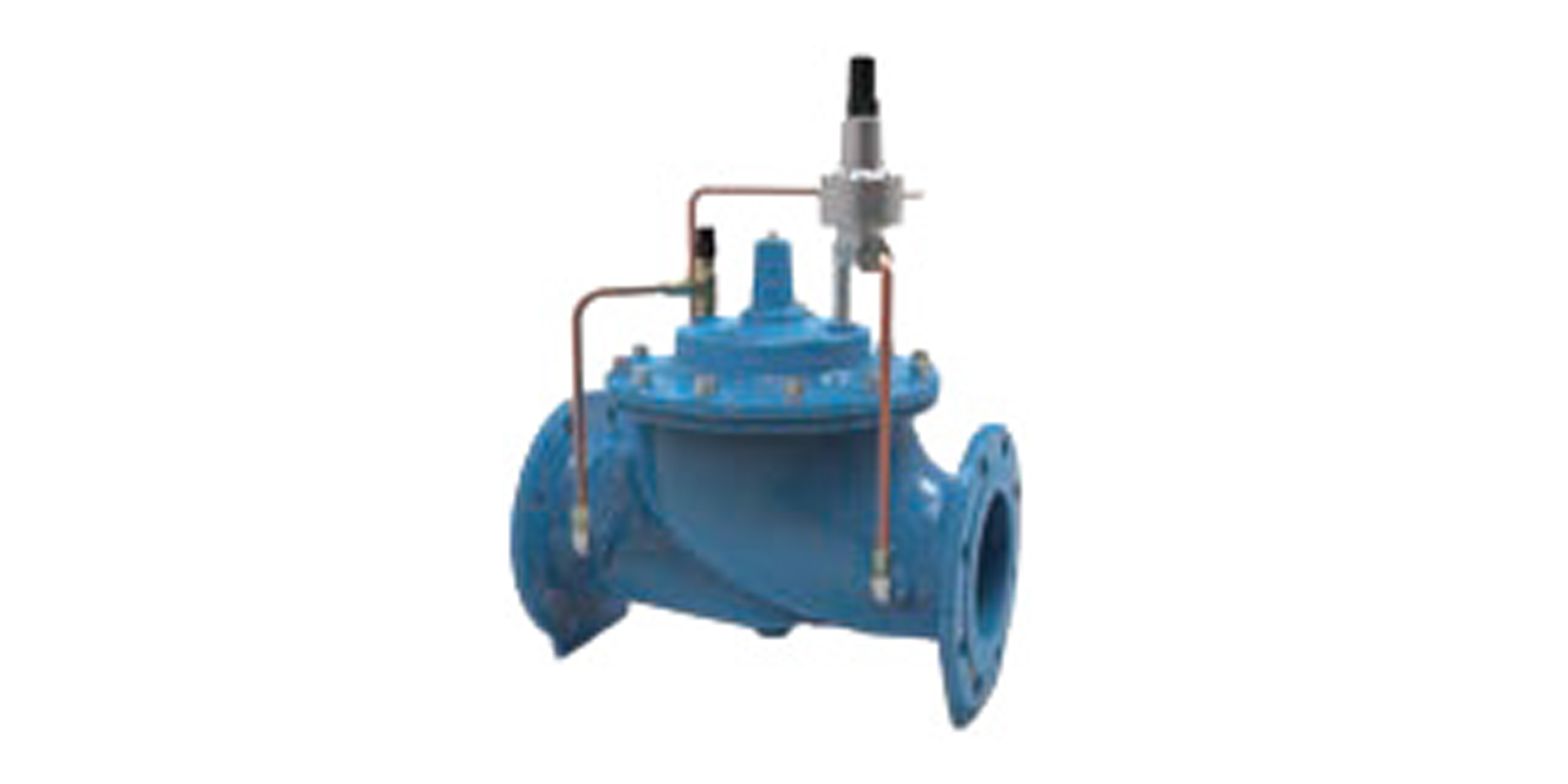

FAF 7552
Pressure Sustaining / Relief

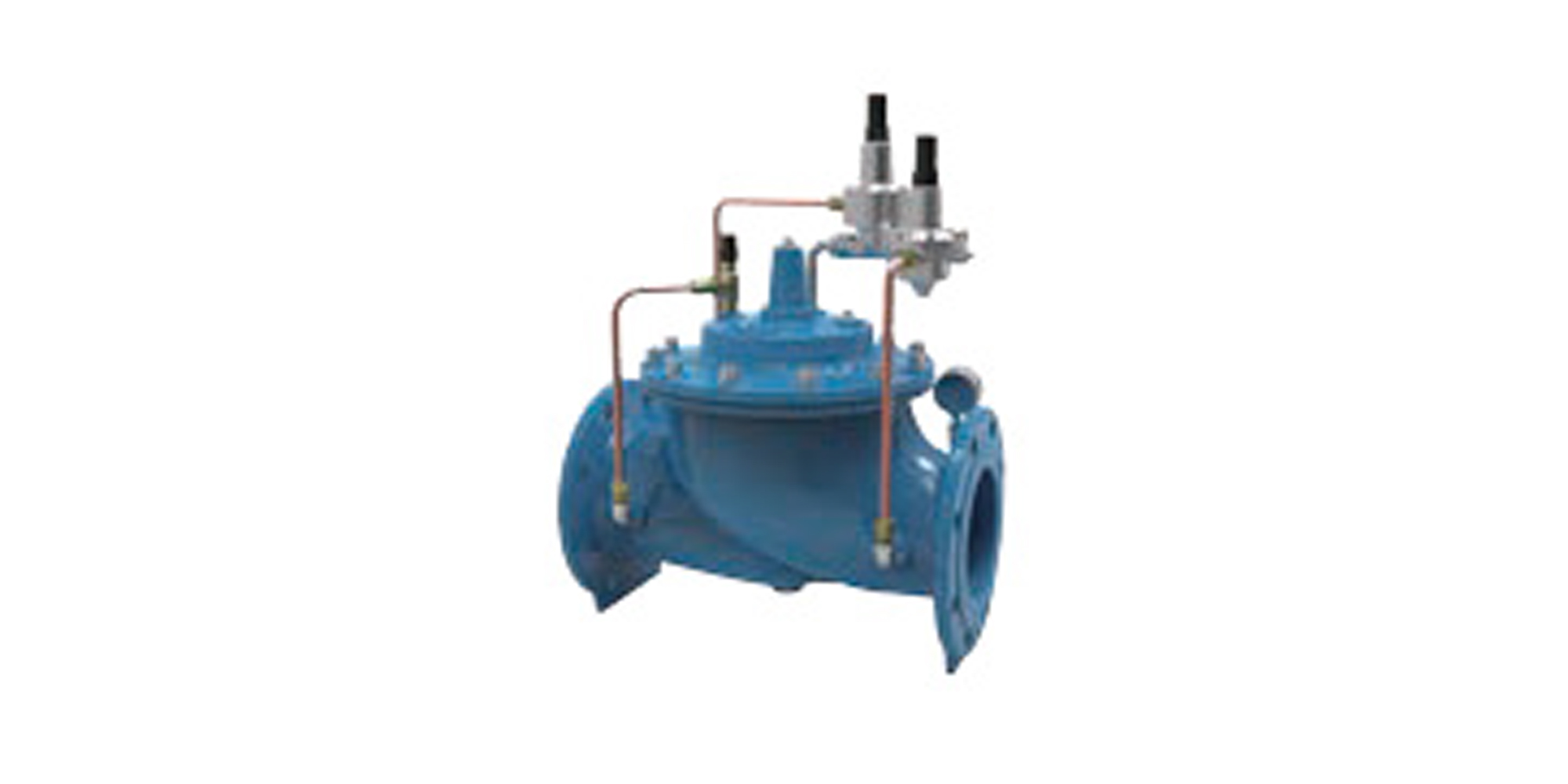

FAF 7553
Pressure Sustaining & Reducing
FAF 7554
Surge Anticipator Valve

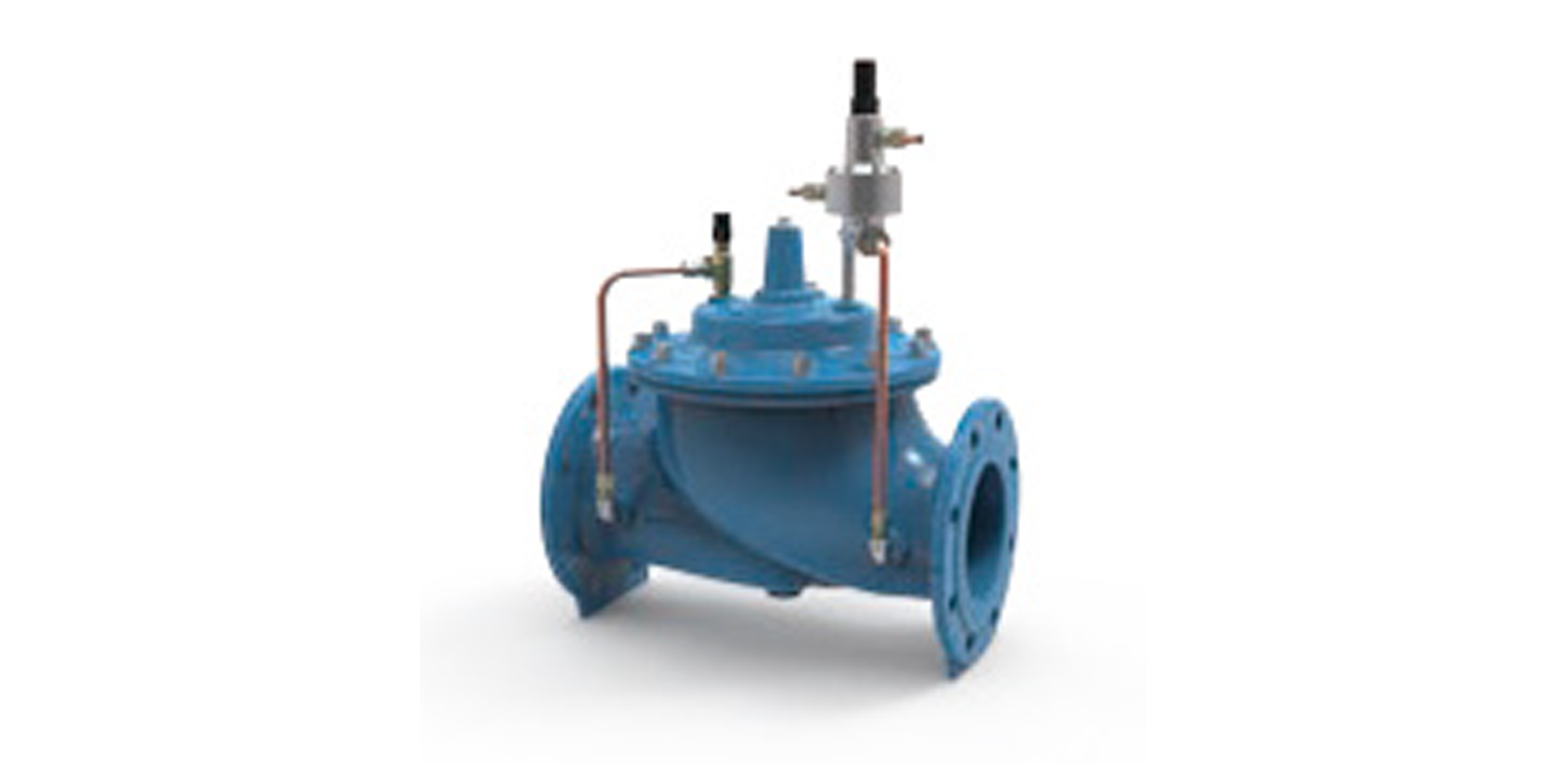

FAF 7555
Pressure Differential
Level Control

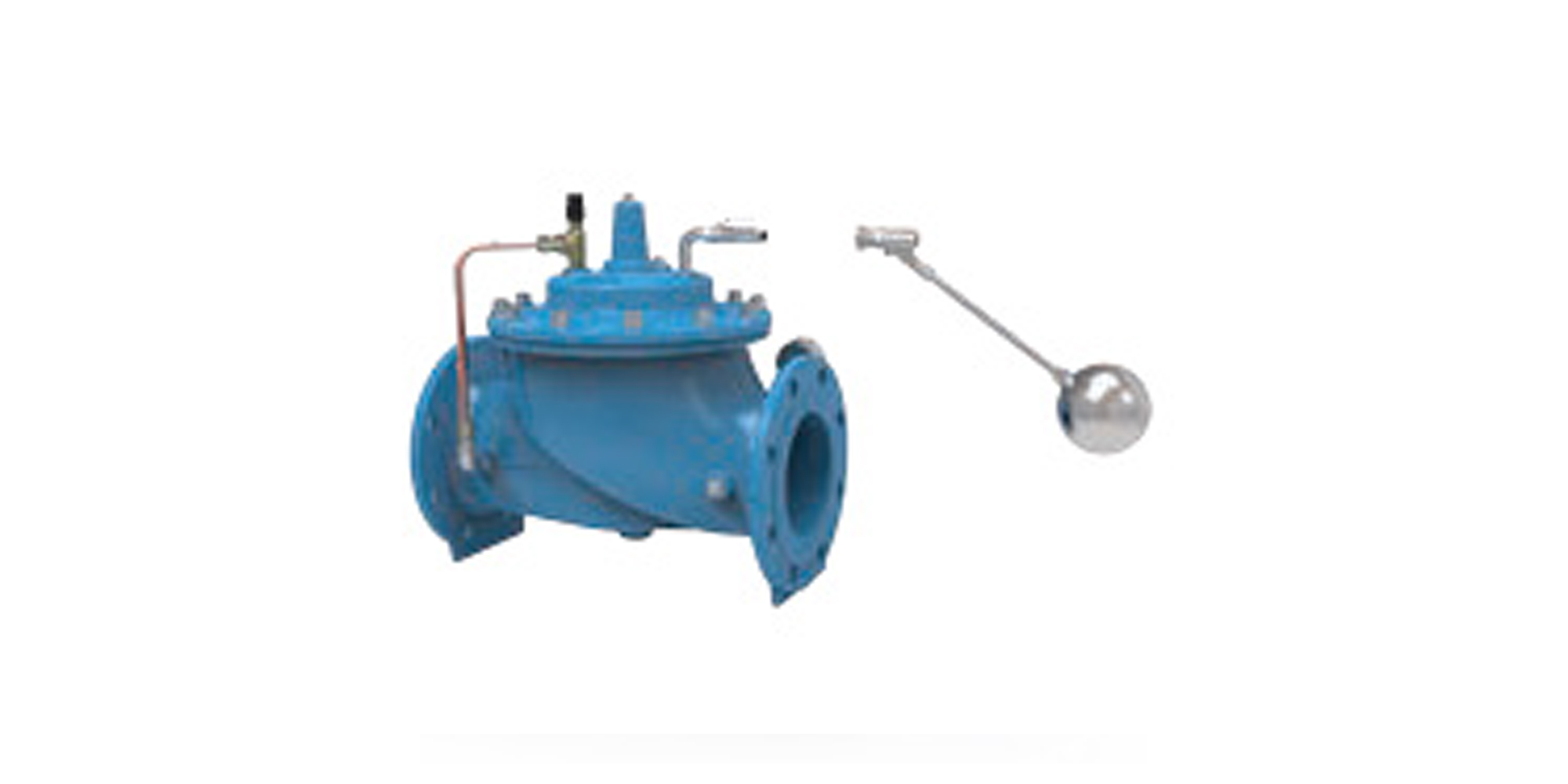

FAF 7561
Fload Modulating
FAF 7562

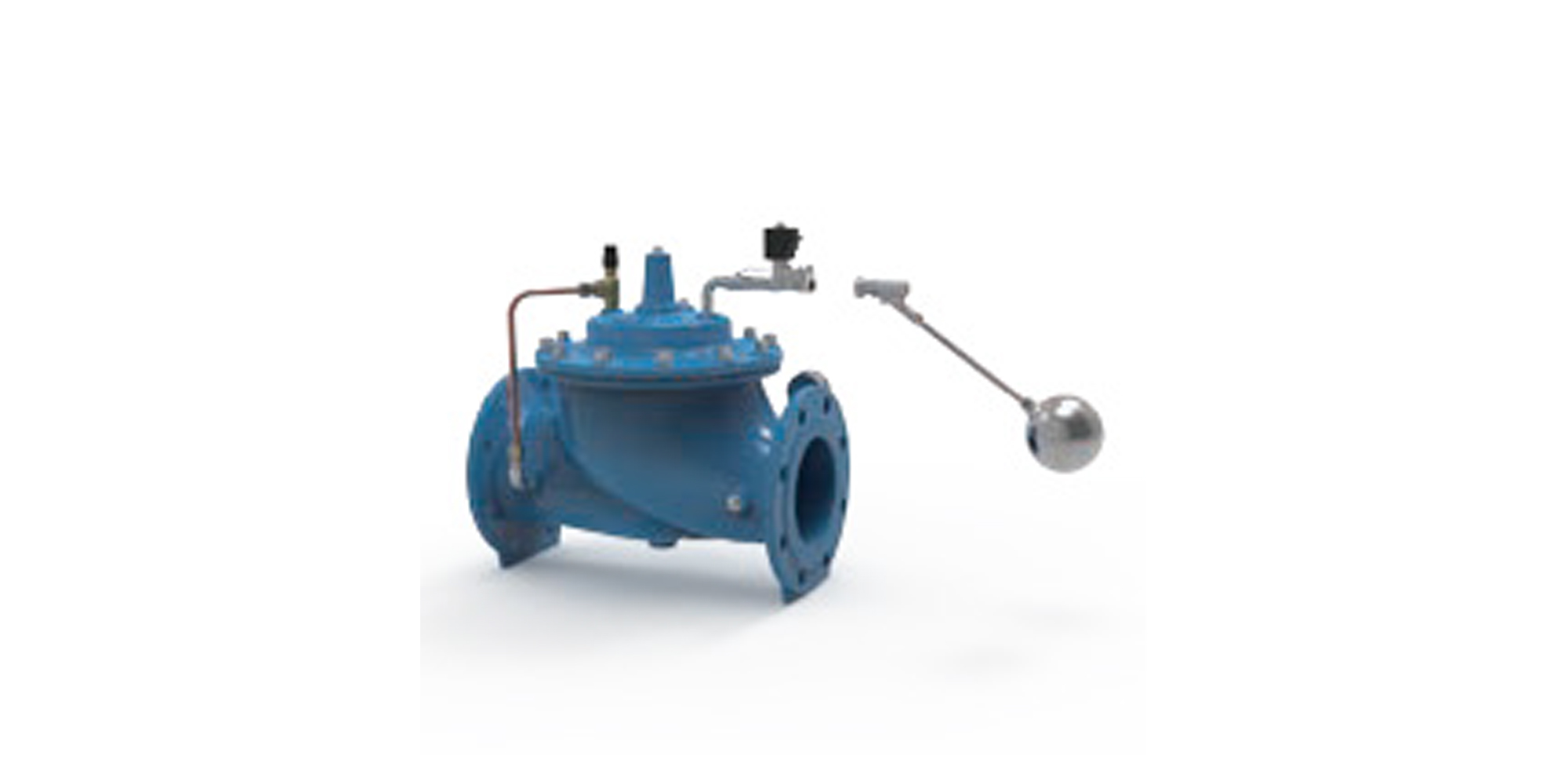

On/Off Float Control
FAF 7563
On/Off Solenoid Control and Security by Float

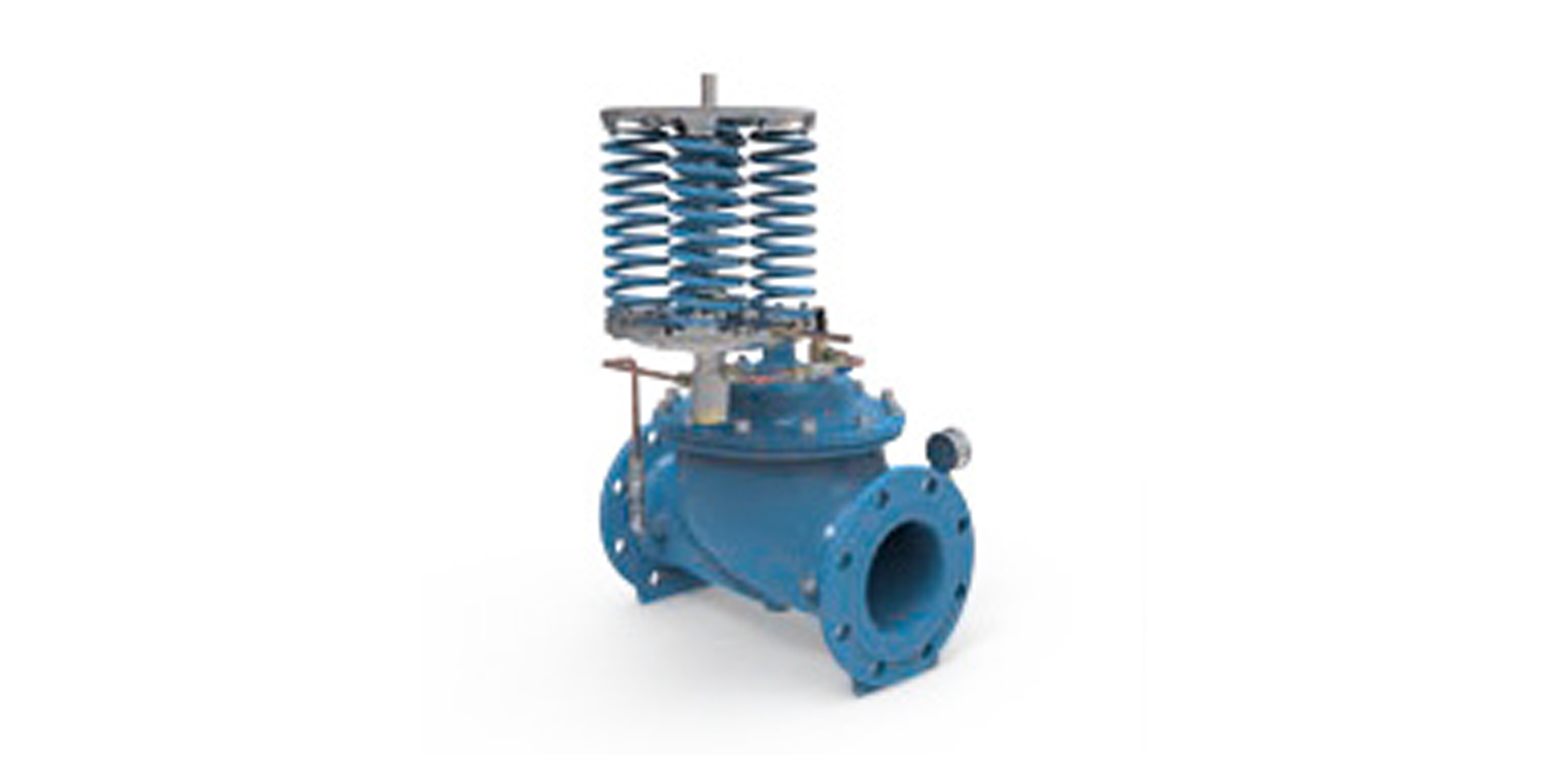

FAF 7564
On/Off Altitude Control
Flow Control

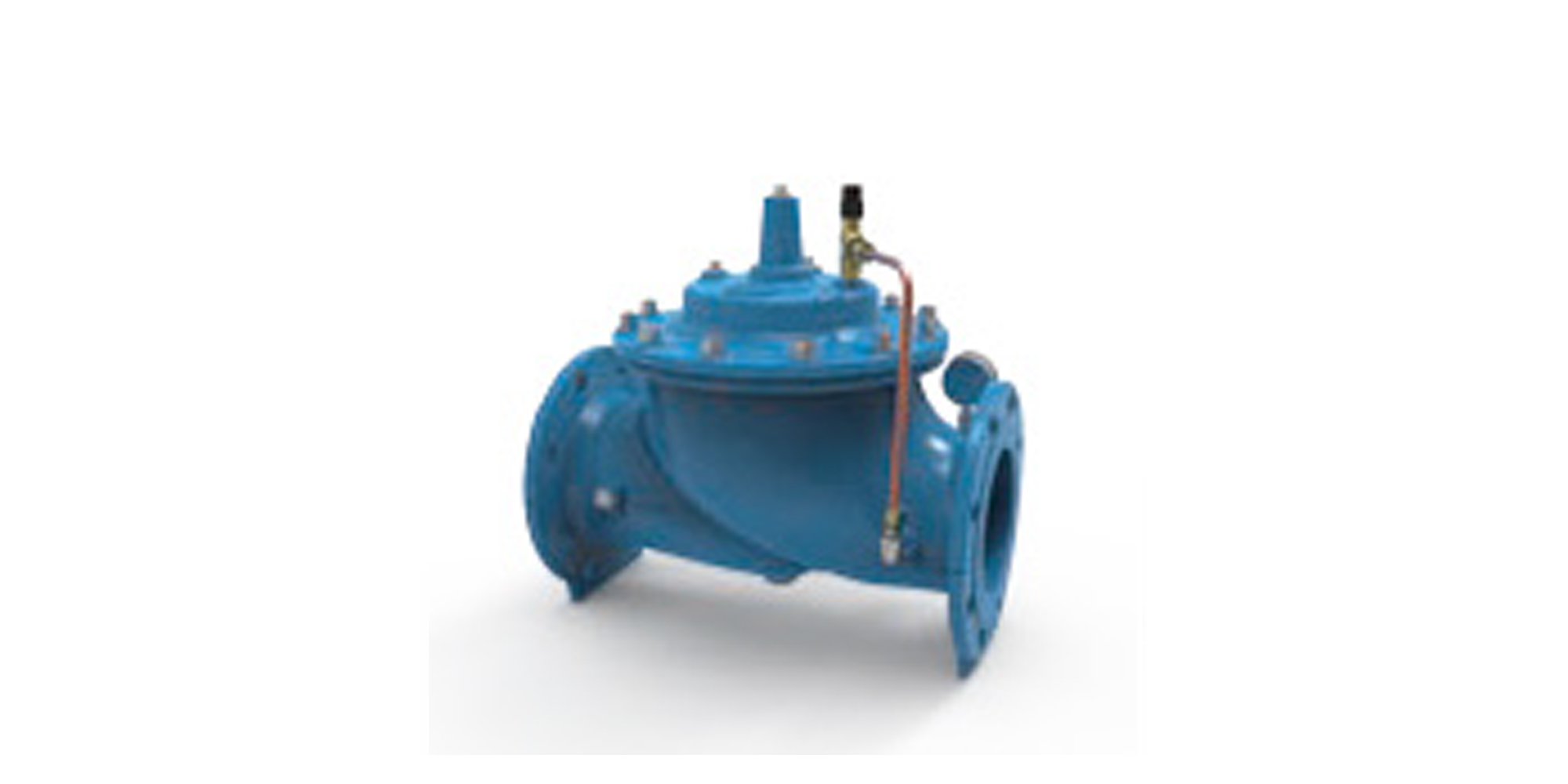

FAF 7571
Noreturn Valve

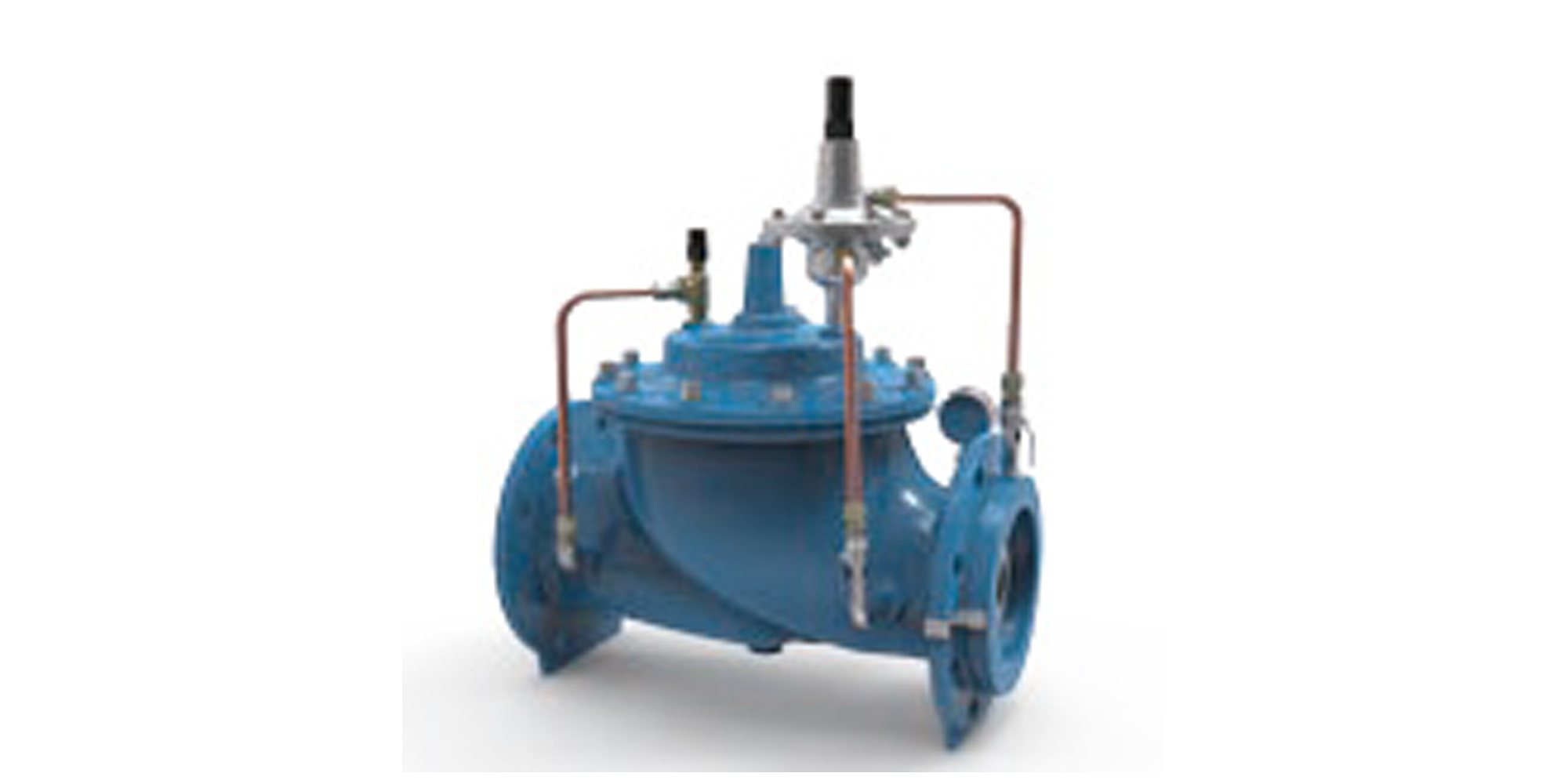

FAF 7572
Flow Limiter

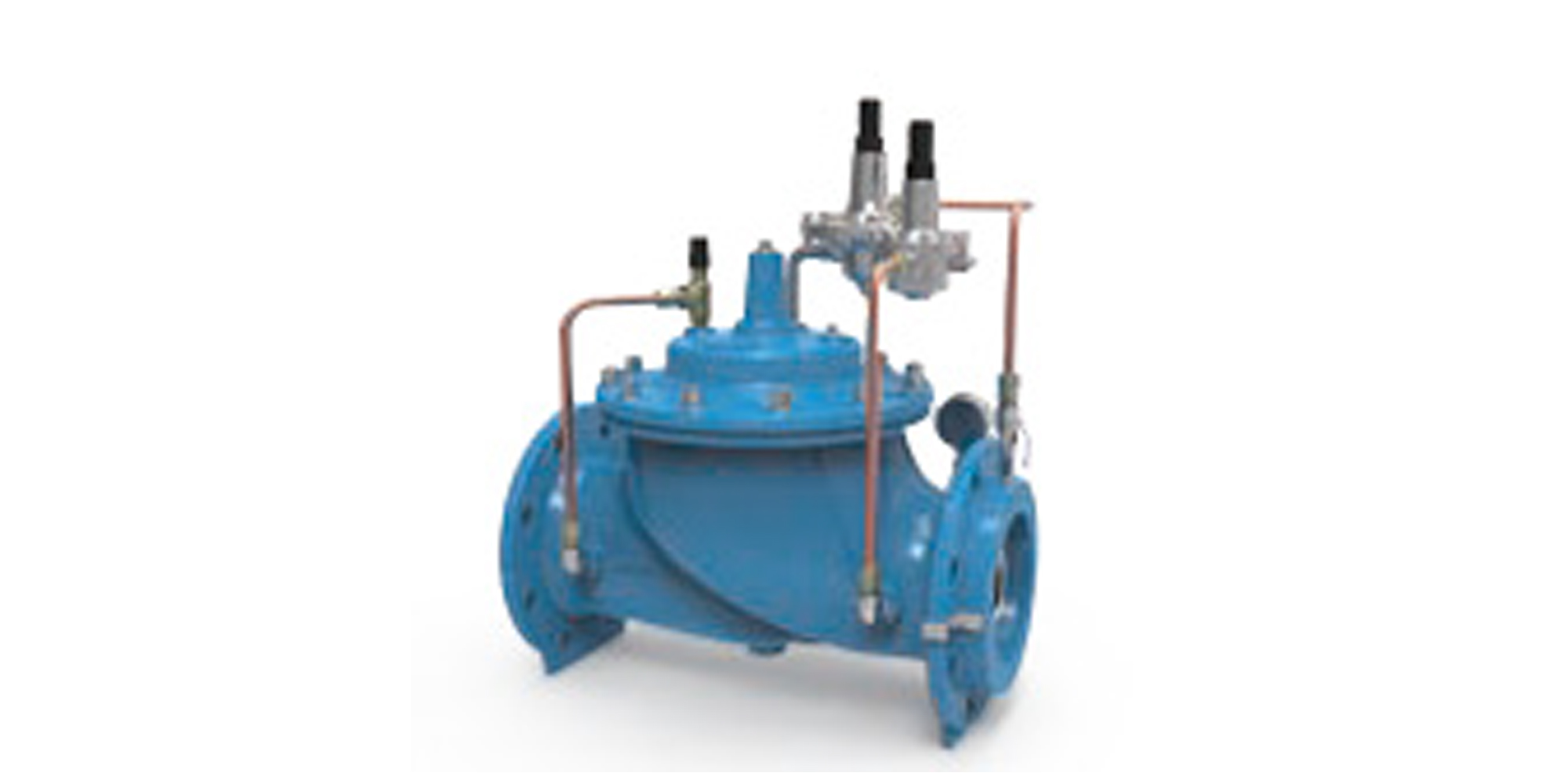

FAF 7573
Flow Limiter and Pressure Reducing
Electrical Control

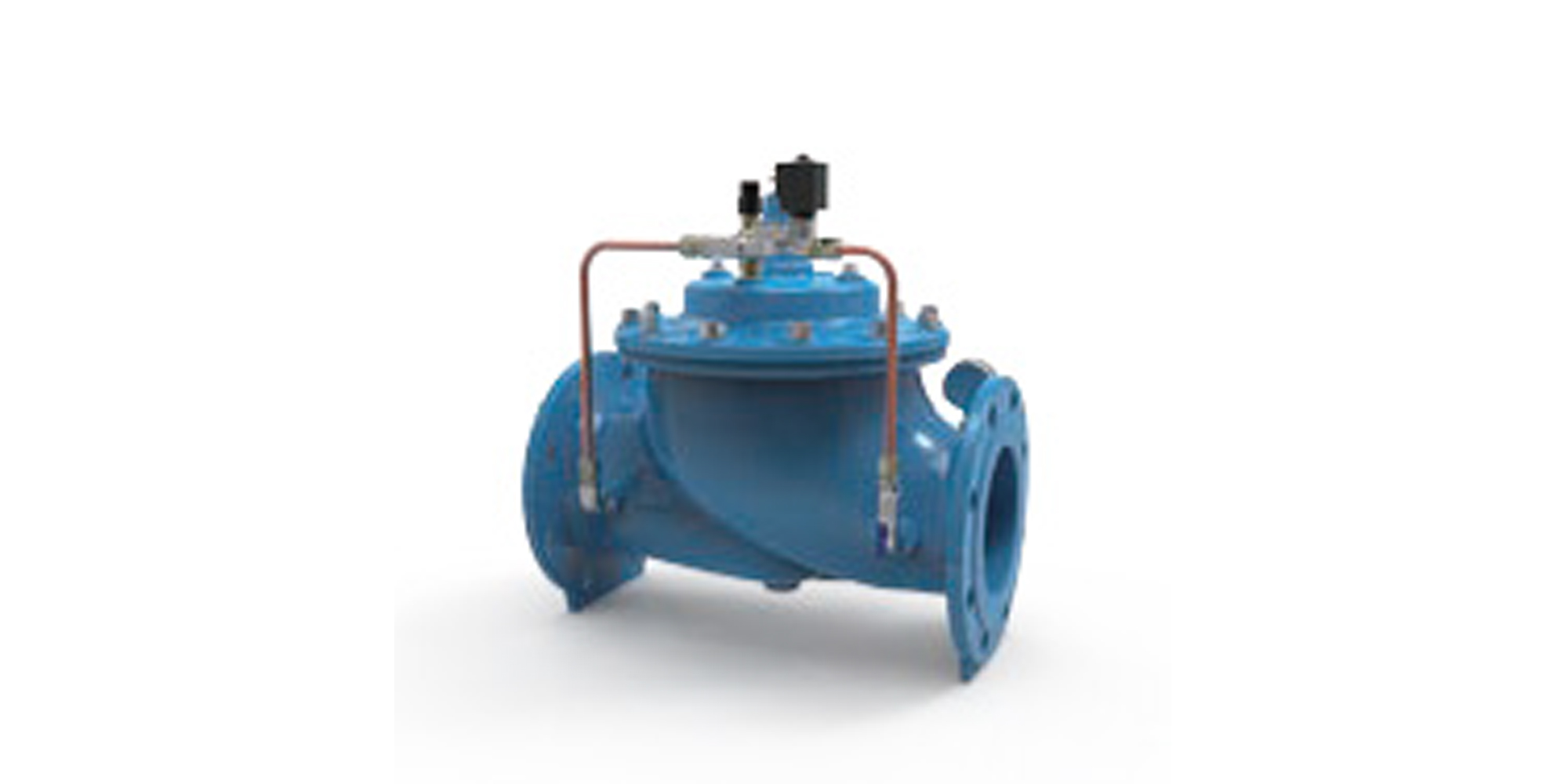

FAF 7581
On/Off Solenoid Control

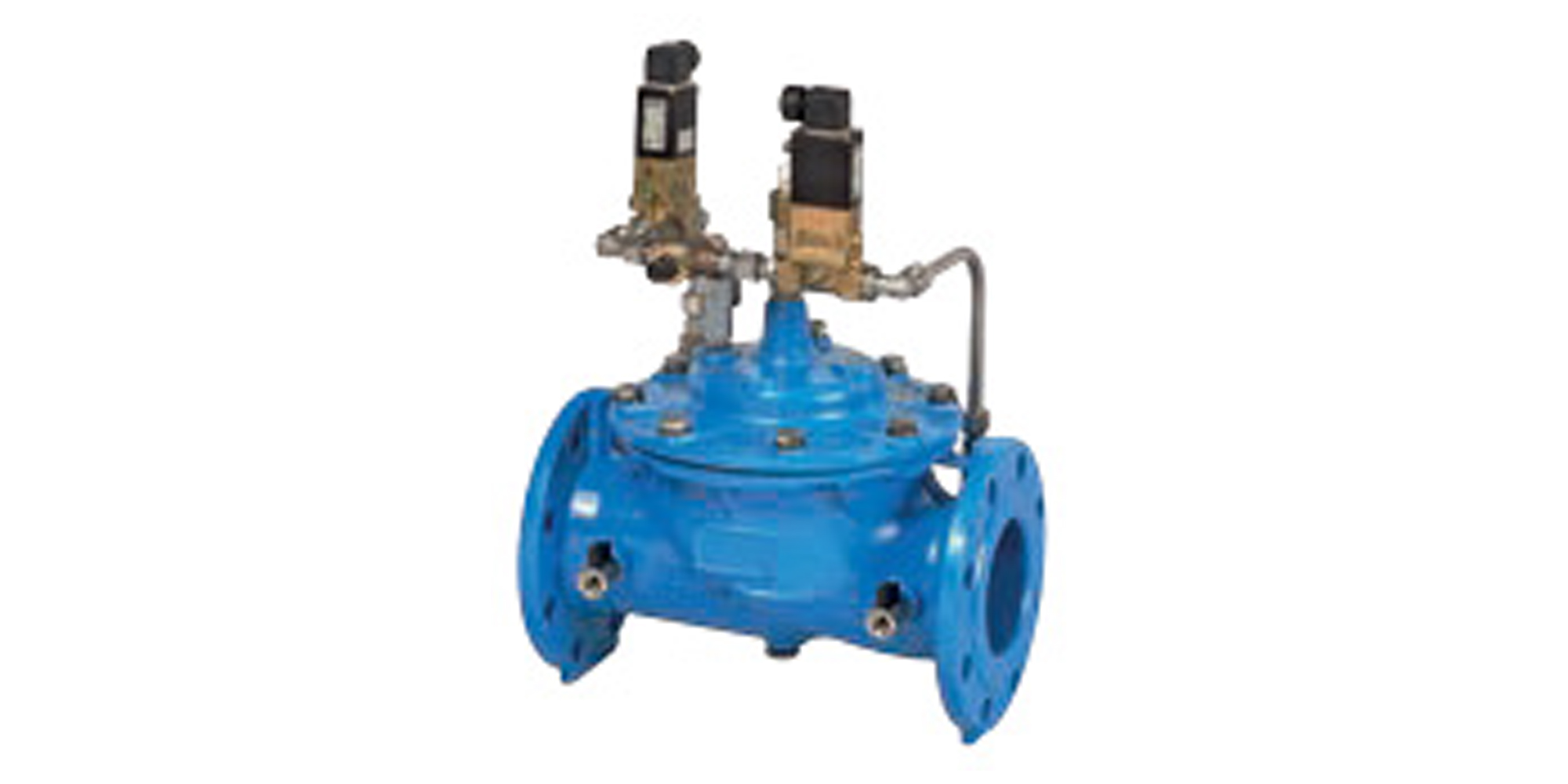

FAF 7582
Dual Solenoid Control Valve
